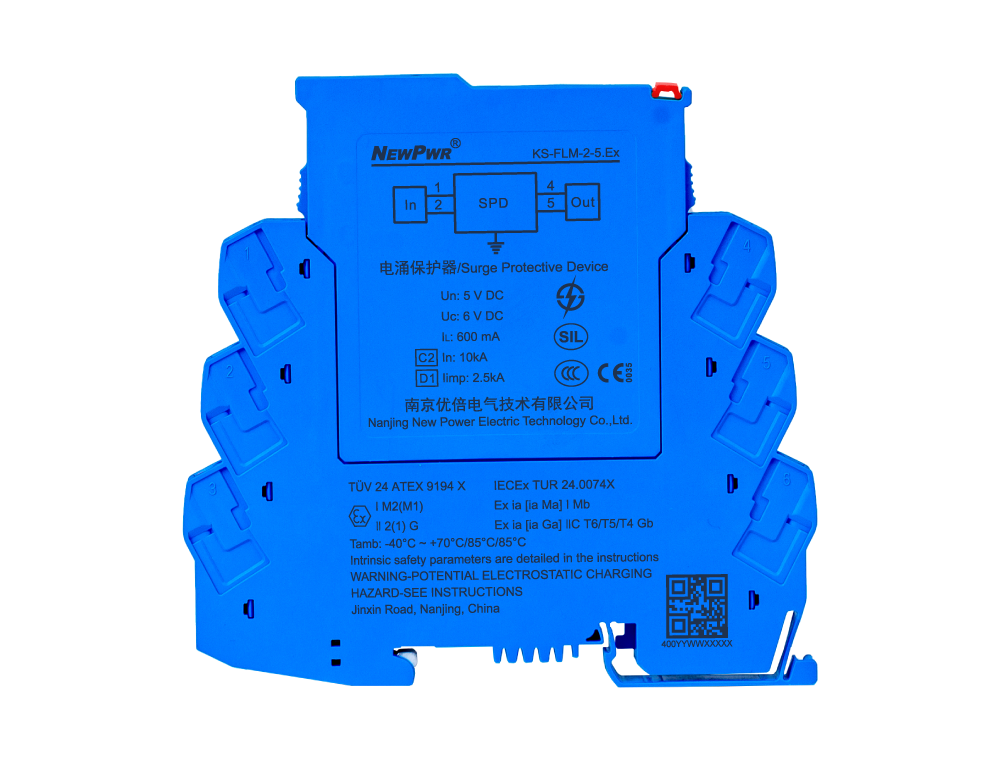

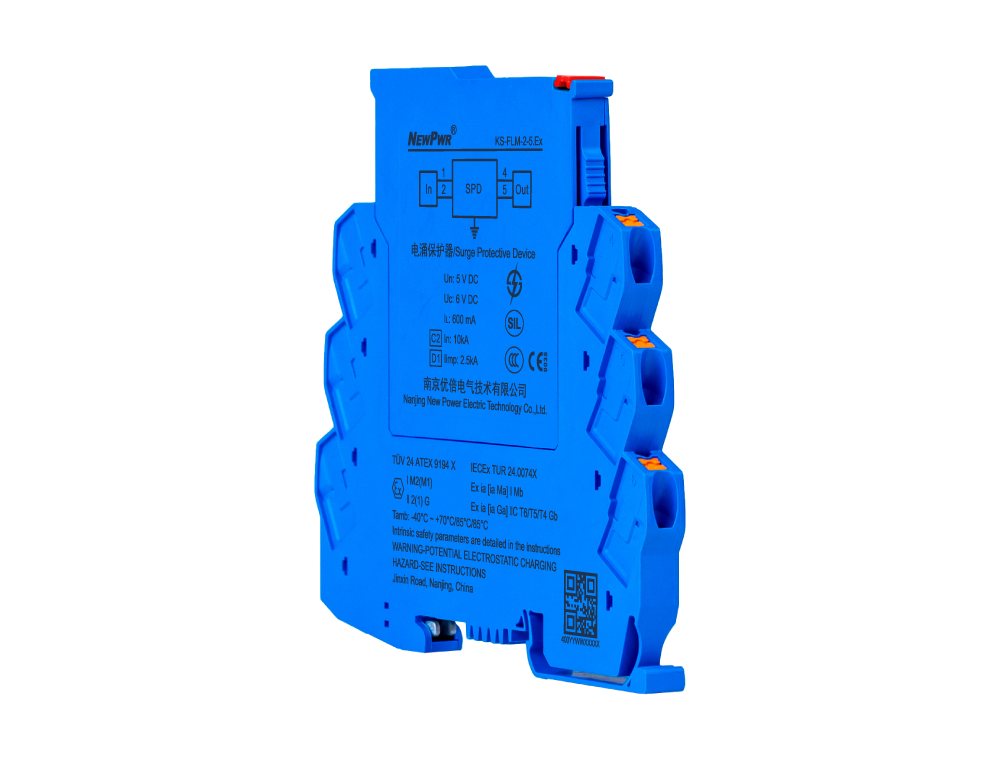

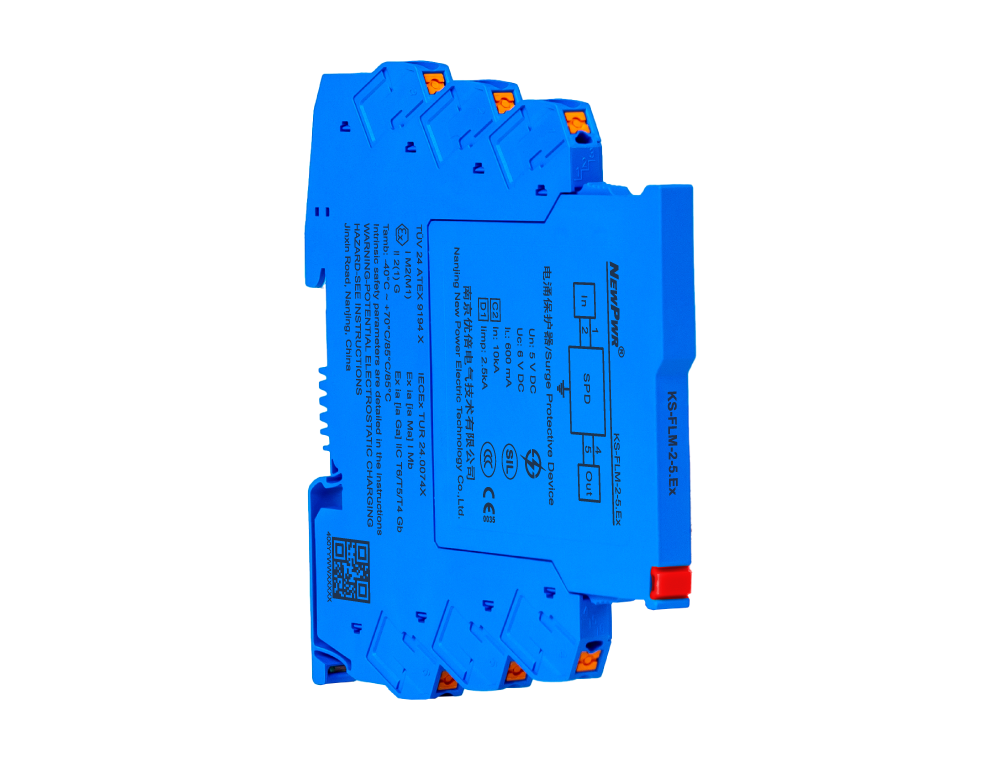

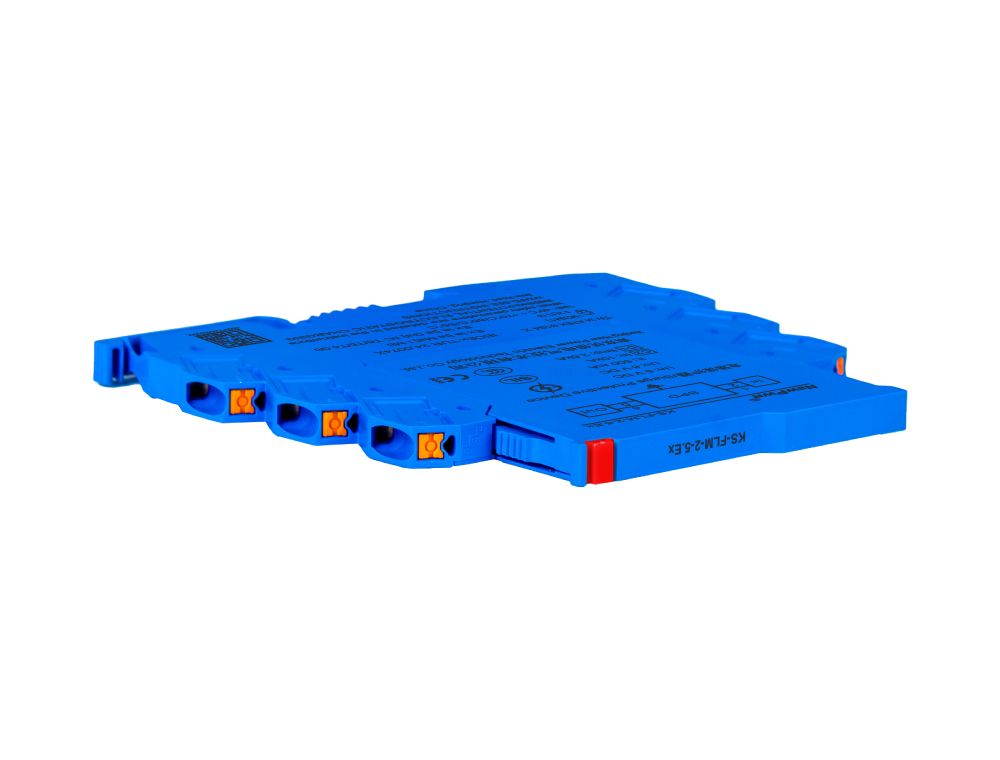

KS-FLM-2-5.Ex

This SPD limits induced transients of different origin (lightning stroke, switching impulse, etc.). This is achieved by diverting the transient current to ground and limiting the signal line voltage to a safe level for the duration of the surge. It can be applied to 2 wire RTD, TC  ，RS-485, MODBUS, PROFIBUS-DP, CAN and other products.
胜天国际官网 - 相信品牌的力量 胜天国际官网 - 相信品牌的力量 胜天国际官网 - 相信品牌的力量 胜天国际官网 - 相信品牌的力量 胜天国际官网 - 相信品牌的力量

Type

Wire system

Ex

Ground protection

Share
KS-FLM-2-5.Ex

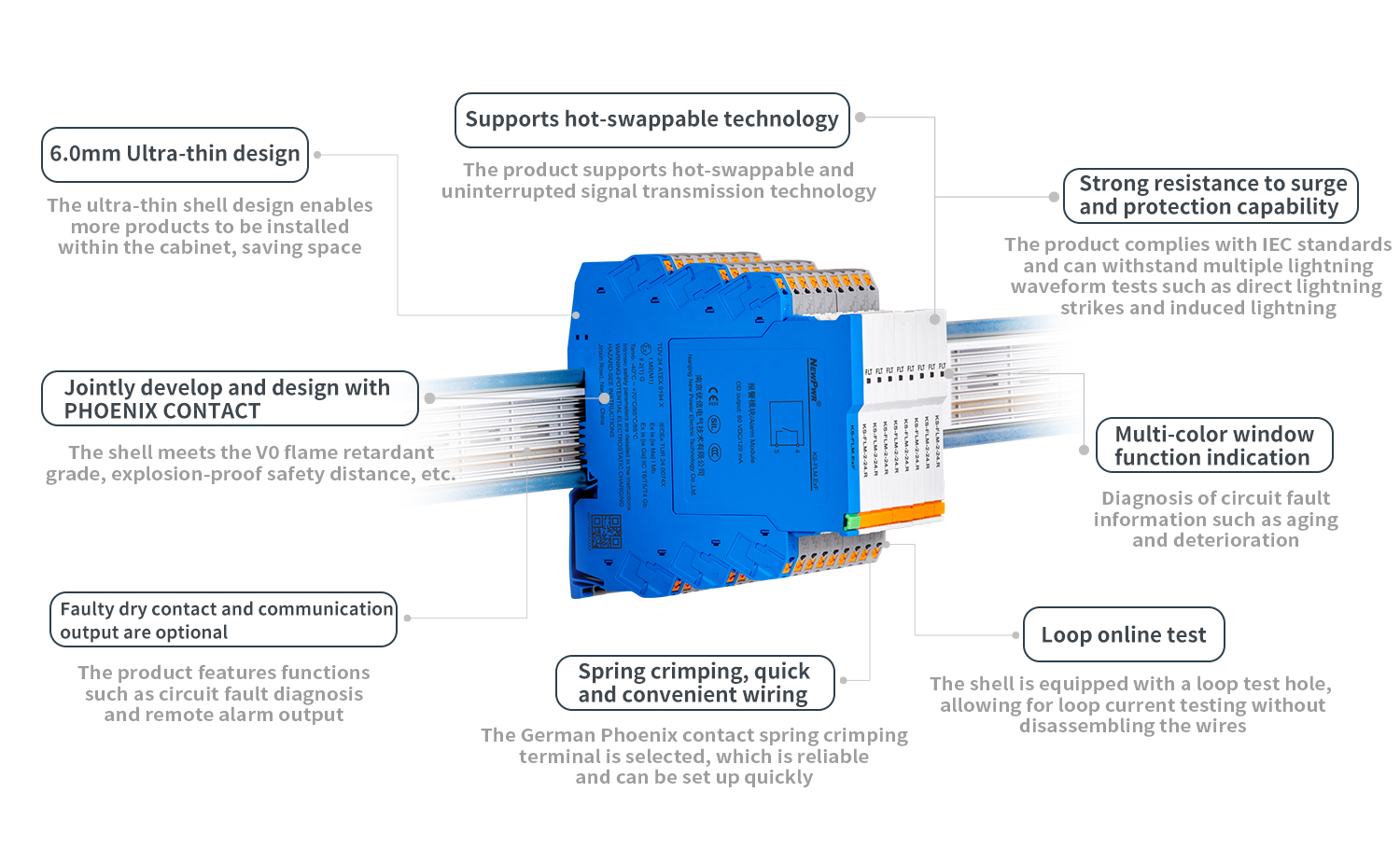

【Core technology】


【Technical data】 General parameters Lightning parameters Operating conditions Shell material 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
General parameters
Nominal voltage Un 5 V
Max. continuous operating voltage Uc(DC) 6 V
Max. continuous operating voltage Uc(AC) 4 V
Nominal current IL 600 mA
Series impedance <1Ω
Response time Ta ＜1ns
Bandwidth fG 300 kHz
Lightning parameters
Total lightning impulse current Iimp(10/350 μs) ,D1 5 kA
Lightning impulse current Iimp(10/350 μs) ,D1 2.5 kA
Max. discharge current Imax(8/20 μs) ,C2 20 kA
Nominal discharge current In(8/20 μs) ,C2 10 kA
Voltage protection level Up(8/20 μs)  ，C2 L – L ≤45 V/ L – PE ≤500V
Voltage protection level Up(1 kV/μs)  ，C3 L – L ≤15 V/ L – PE ≤500V
Operating conditions
Operating temperature -40 ℃ ~ +85 ℃
Shell material
Material PBT
Flame retardant grade(UL94) V0
Protection degree IP20
Mechanical specifications
Cross-sectional area (min.) 0.2 mm?
Cross-sectional area (max.) 2.5 mm?
Installtion 35mm DIN rail
Grounding mode Rail grounding
Certified data
Standards IEC 61643-21/GB/T 18802.21
Product approvals ATEX, IECEx, SIL, CE, Lightning protection
Device type Type A
HFT 0
Operating mode Low/High
SIL SIL3
λS (1 FIT=10-9/h) 38.3 FIT
λDU (1 FIT=10-9/h) 1.02 FIT
λDD (1 FIT=10-9/h) 0 FIT
λTOTAL (1 FIT=10-9/h) 39.2 FIT
SFF 97.4%
PFDavg(T1=7Y) 3.13E-05
PFH 1.02E-09 1/h
Intrinsically safe circuit certification Ex ia [ia Ma] ⅠMb, Ex ia [ia Ga] ⅡC T6/T5/T4 Gb
Ui 6 V
Ii 400 mA
Pi N/A
Ci 0 nF
Li 163.2 μH
